SMARTGEN HGM-6120NC HGM 6120NC HGM6120NC HGM 6120 NC - AUTOMATIC MAINS FAILURE - GENUINE

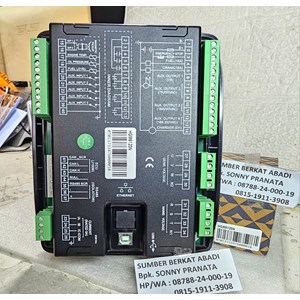

SmartGen HGM6120NC Automatic Start Generator Controller (AMF)
Description :
HGM6120 series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three remote (remote control, remote measure and remote communication). The controller uses LCD display, optional display interface including Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French with easy and reliable operation. HGM6120 series automatic controller uses micro-processing technique which can achieve precision measurement, value adjustment, timing and threshold setting etc.. All the parameters can be configured from front panel or use USB interface (or RS485 interface) to adjust via PC. It can be widely used in all types of automatic control system for its compact structure, simple connections and high reliability.
HGM 6120N
- Automatic Mains Failure
- Digital Input = 5
- Relay Output = 6
- Analog Input = 3
- Dimension (mm) = 209 x 166 x 45
- Panel Cutout (mm) = 186 x 141
Parameter list :
Display = LCD (13264)
Language = Chinese & English
AC System = 1P2W/2P3W/3P4W
Alternator Voltage = (170~270)V(ph-N)
Alternator Frequency = 50/60Hz
Monitor Interface = LINK
Programmable Interface = LINK
RTC(Real Time Clock)
Scheduled Start Genset
Circulate Start Genset
Switch Over Priority
Applicable Switch Type = PC Two-stage, PC Three-stage, CB and CC switch
DC Supply = DC (8-35) V
Case Dimensions(mm) = 13912048
Panel Cutout(mm) = 130111
Operating Temp. = (-25~+70) ℃
Generator
